Ekki Timbers - Hydra-Slide

Ekki Jacking Timbers

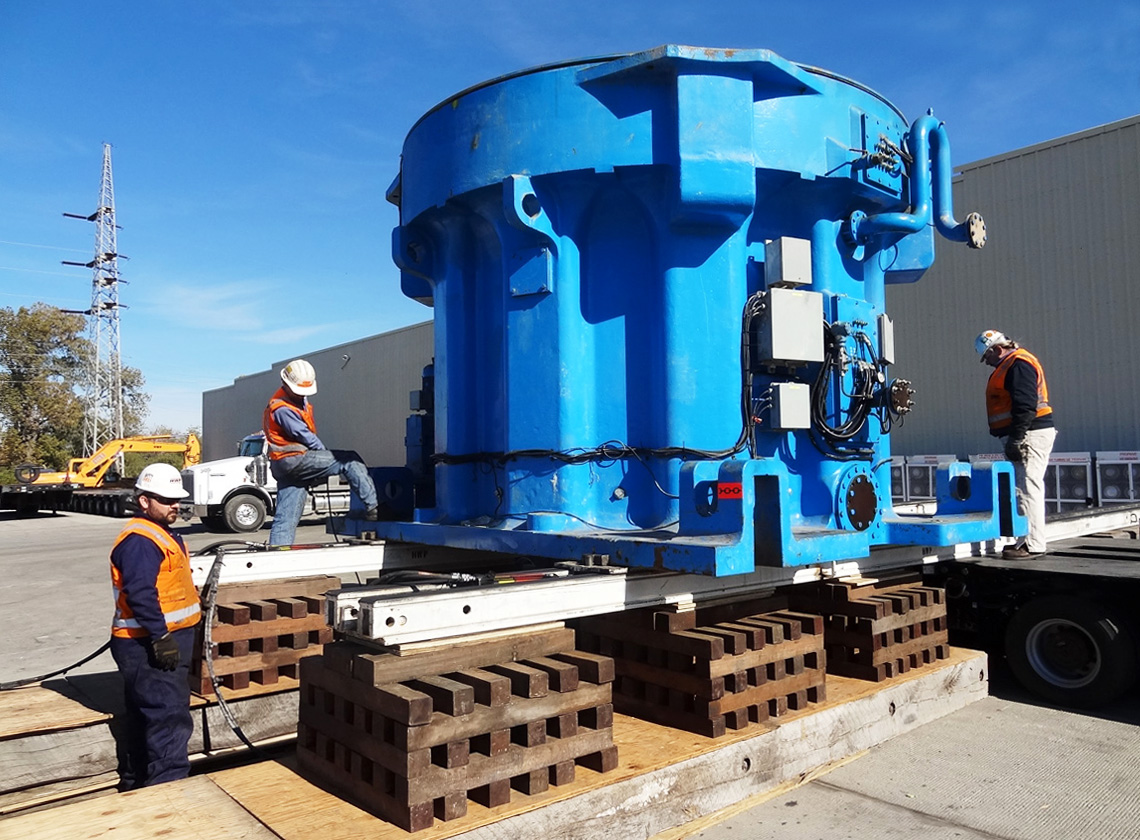

Ideally suited for jacking and blocking applications, Ekki hardwood jacking timbers are exceptionally strong and resistant to crushing and bending.

Features

Manageable size and weight for maximum efficiency during blocking operations

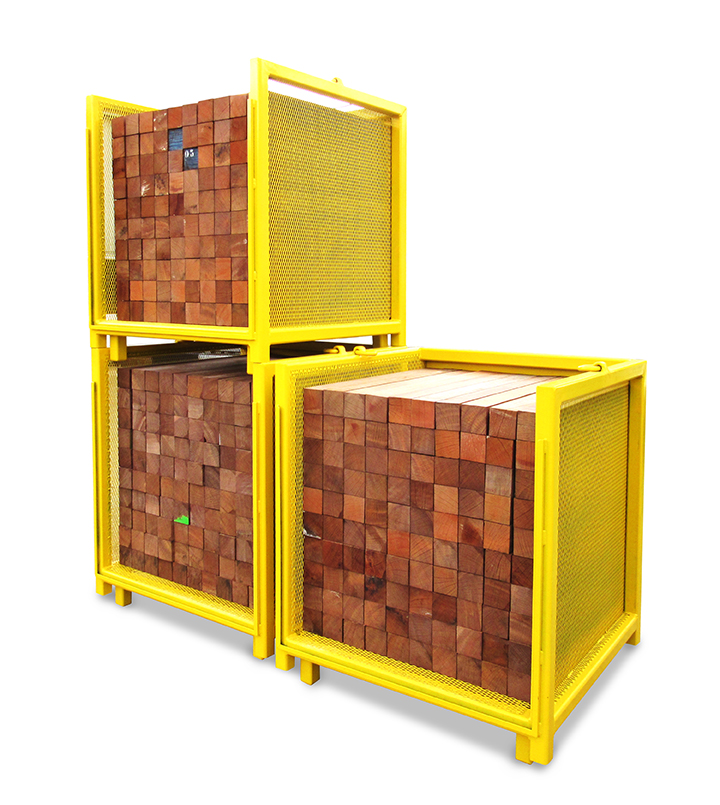

Available with engineered timber storage cribs- the cribs are forkliftable and stackable with lifting lugs and expanded metal bottom and sides for drainage and ventilation.

placeholder

Technical information

Dimensions

* Crib holds 100 pcs. of 4″ x 4″ x 40″ timber

Dimensions

* Crib holds 100 pcs. of 10cm x 10cm x 100cm timber

Support

Ekki General Information

placeholder

What is the difference between Ekki wood and other traditional jacking timbers, like Oak?

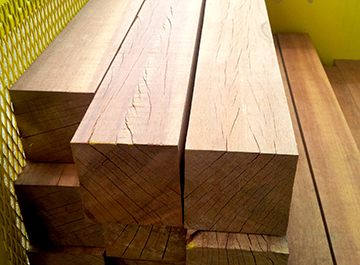

This wood has exceptional strength and resistance to crushing or bending and is ideally suited for jacking and blocking applications. Ekki is a West-African hardwood that is over three times stronger than white oak or fir. It is naturally resistant to insects, is non-porous, and does not rot. These timbers do not become structurally compromised over time like traditional hardwood does. Our timbers are a standard size of 10cm x 10cm x 1.0m and weigh only about 11kgs each (4″ x 4″ x 40″ x 25 lbs). They are much smaller, lighter, and easier to handle than conventional timbers.

Is Ekki more expensive than other jacking timbers?

As an initial investment, Ekki may be more expensive than other traditional woods; however, it will last for years without becoming structurally compromised, allowing for safer operations because there is no risk of blocking, crushing, or yielding. They also save time by being much lighter and easier to use for blocking and jacking applications.

Is it difficult to import due to it being a natural product?

We work with a mill in Holland that produces these timbers from fresh logs. We order by the Container load and handle all documentation and import requirements. The timbers include Phytosanitary Certificates, and when required, Certificates of Origin. To import Ekki timbers into the USA, a Permit is required by the USDA. We give our American customers all the information they need to apply for and receive this free Permit before we deliver.

Looking for
more support?

We can help.

Frequently Used Together

Climbing Jacks

Hydra-Jack™ Climbing Jacks incorporate a hydraulic cylinder inverted inside a specially designed load casing. As the jacks are extended and retracted, block piles are progressively built under the jack for a fast and safe means of raising or lowering large loads or structures.

TT150 Turntable

Our engineered Turntables are extremely simple and low-maintenance, and they solve a big problem: rotating any heavy or oversized load accurately and efficiently, even in areas of restricted access or clearance. Ideal for rotating items such as transformers or generators during handling and installation, they incorporate a reversible, hydraulically powered rotating mechanism for precise control.

TT150 Turntable
