HT300
Heavy Track
System

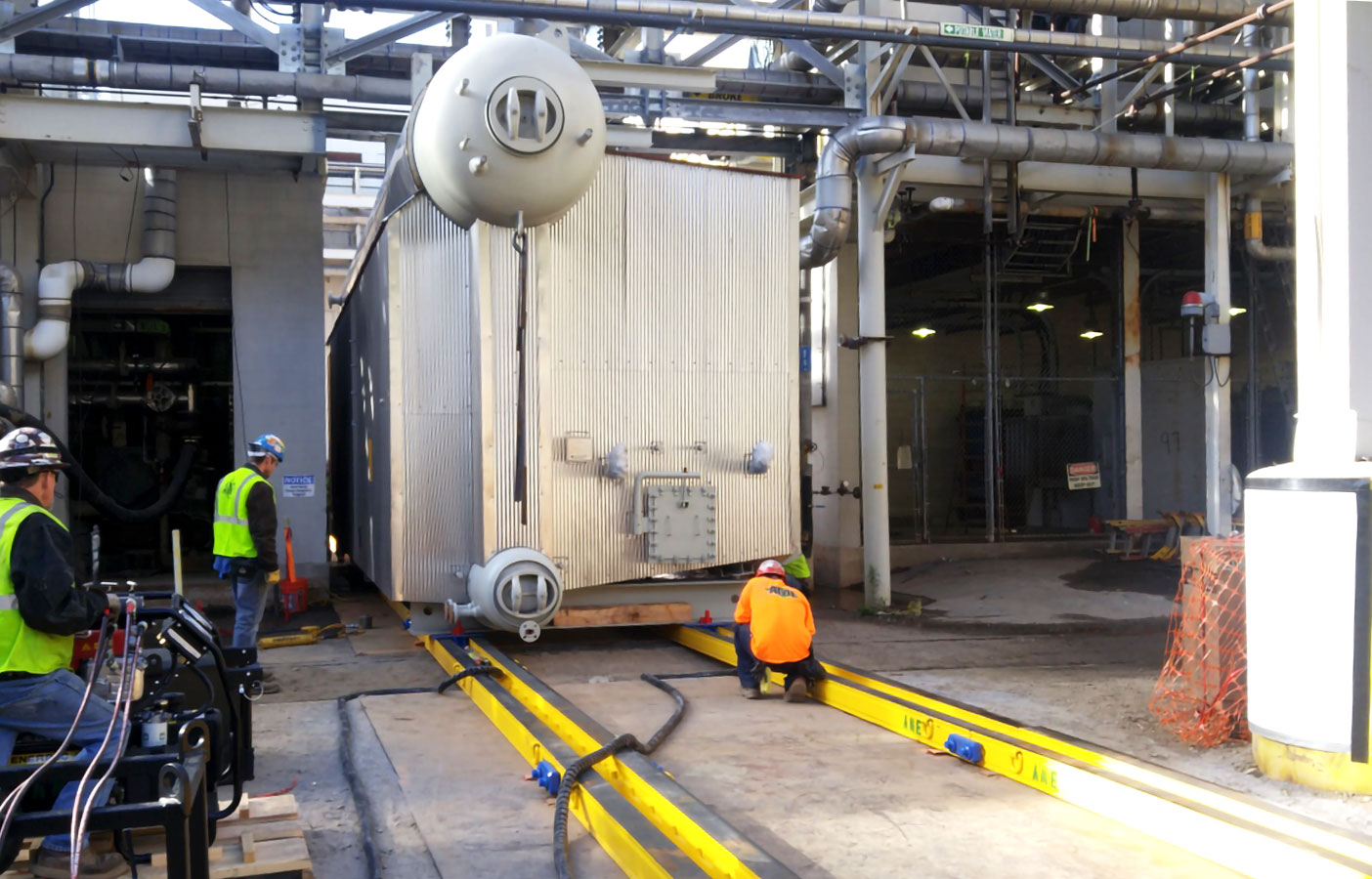

The HT300 features rigid steel tracks capable of carrying loads over unsupported spans, is engineered to push loads up to 300 tons, and has a working height of only 7″ (180mm).
- Capable of pushing loads up to 300 tons
- Quick & simple track connections
- Durable graphite slide surface
- Cylinders automatically reset
The HT300 features rigid steel tracks capable of carrying loads over unsupported spans, is engineered to push loads up to 300 tons, and has a working height of only 7″ (180mm).
Features
- Capable of pushing loads up to 300 tons
- Quick & simple track connections
- Durable graphite slide surface
- Cylinders automatically reset

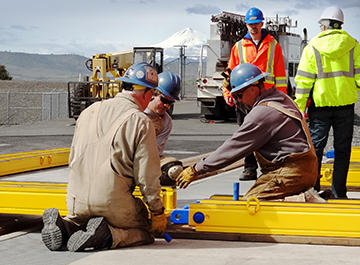

- Simple, tool-free connections
- Designed & engineered for both pushing and pulling
- Carries load over unsupported spans
Technical information
Specifications
* based on standard system using (2) hydraulic cylinders
Dimensions
Specifications
Dimensions
Support
How do Hydra-Slide Heavy Track skidding systems work?

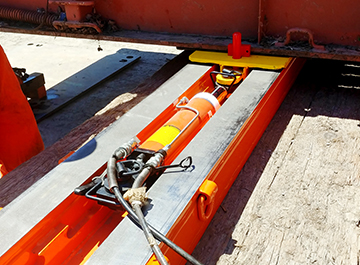

How do the push/pull cylinders automatically reset into the track after a push cycle?
All Hydra-Slide systems feature a ratchet track design, so when the cylinders are retracted, they will automatically reset into the next ratchet slot position for the next push cycle.
When I order an HT300 skidding system, what is included?
Our standard HT300 system package includes:
50′ (15m) of double track

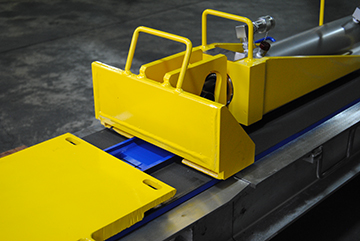

4 Push/Pull skid shoes
2 hydraulic cylinder assemblies
Connecting bars & pins
Safety stop blocks
Graphite lubricant
Steel toolbox for storage and transport
Additional track sections and components are also available
Frequently Used Together
Synchronous Power Units
Hydra-Pac Synchronous Power Units provide synchronized control of multiple hydraulic cylinders. They are suitable for operation of all Hydra-Slide Skidding Systems, Turntables, Climbing Jacks, and other double-acting jacking applications. These power units are designed with multiple independent oil circuits, providing equal flow to each line regardless of weight distribution and allowing the operator to raise or lower virtually any load equally on all points.

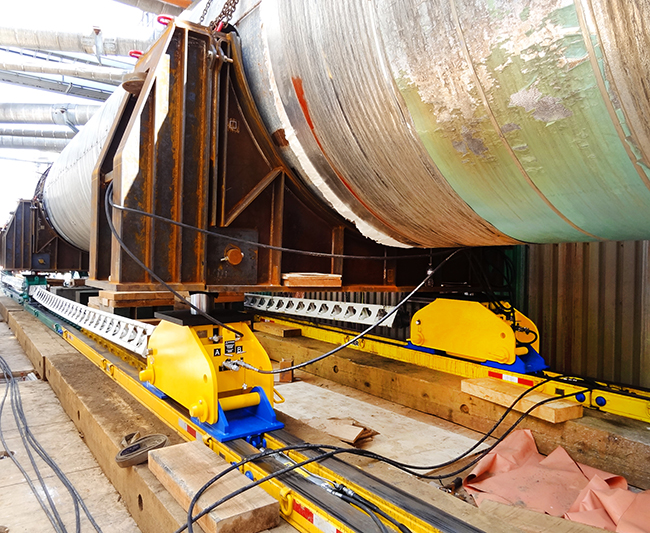

JLS250 Jacking Load Shoes
Our JLS250 jacking load shoes are load-compensating skid shoes designed to work with our Heavy Track skidding systems. This universal shoe can be used with both the HT300 and HT500 interchangeably. The JLS250 shoes can be connected hydraulically with any number of other shoes, increasing the total system capacity while maintaining equal load support and weight distribution.

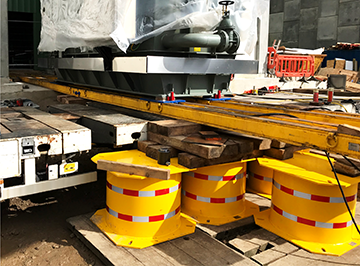

Modular Stands
Engineered 100-ton capacity modular steel stands—available in standard heights from 18″ to 48″ (460mm to 1220mm).
How to Buy
Information on product purchasing, lead time, shipping, and more.

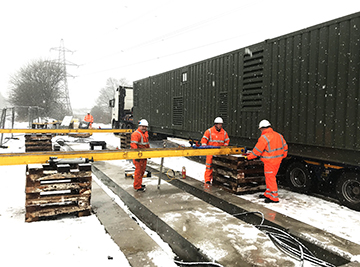

It was the only complete solution considering dimensional constraints, safety and engineering concerns, speed, and control issues, while offering ease of use and functionality. We needed a solution that was pre-engineered, simple in design, and effective—regardless of weather conditions."
