HT1000
Tri-Rail System
- Capable of pushing loads up to 1000 tons

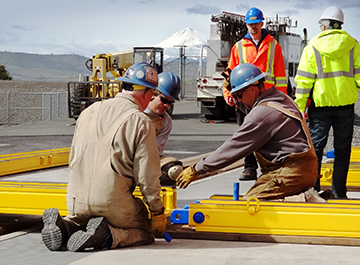

- Quick & simple track connections

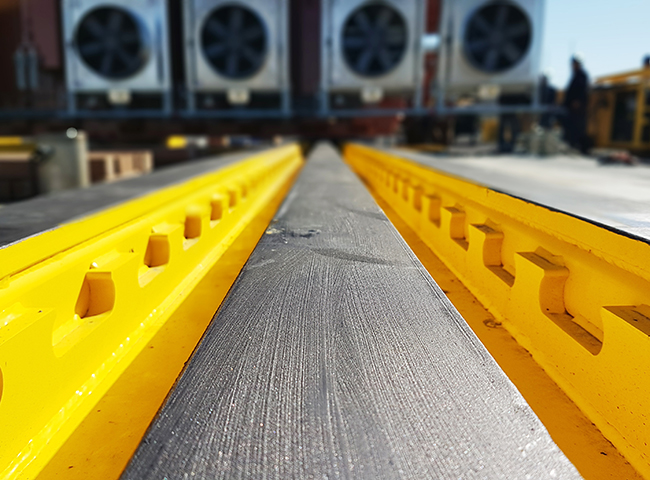

- Durable graphite slide surface
- Cylinders automatically reset
The HT1000 Tri-Rail is our highest-capacity skidding system. Each track incorporates two cylinders for maximum push capacity, and the system's working height is only 8″ (205 mm).
Features
- Capable of pushing loads up to 1000 tons
- Quick & simple track connections
- Durable graphite slide surface
- Cylinders automatically reset
- Simple, tool-free connections
- Carries load over unsupported spans
Technical information
Specifications
* based on standard system using (2) hydraulic cylinders
Dimensions
Specifications
* based on standard system using (2) hydraulic cylinders
Dimensions
Support
What makes Hydra-Slide skidding systems different than other jack-and-slide systems?
What kind of maintenance and servicing is required on the Heavy Track skidding systems?
These systems require very little maintenance. They should be kept clean and handled with care so as not to damage any parts or sliding surfaces. When not in use, all components should be stored in their provided storage racks and boxes, protected from the environment. The surfaces will require an occasional reapplication of graphite. If surface rust collects on the inside surfaces, simply brush it off with a wire pad. The most sensitive parts of the system are the hydraulic cylinders. Follow the Operating Manual’s recommendations for inspecting and servicing the hydraulic components of the system to avoid malfunctioning and the risk of introducing contaminants into your hydraulic system.
When I order an HT1000 skidding system, what is included?
Our standard HT1000 system package includes:
50 (15m) feet of double track
4 Push/Pull skid shoes with safety pins
4 hydraulic cylinder assemblies
Connecting bars & pins
Safety stop blocks
Graphite lubricant
Steel toolbox for storage and transport
Additional track sections and components are also available
Frequently Used Together
Synchronous Power Units
Hydra-Pac Synchronous Power Units provide synchronized control of multiple hydraulic cylinders. They are suitable for operation of all Hydra-Slide Skidding Systems, Turntables, Climbing Jacks, and other double-acting jacking applications. These power units are designed with multiple independent oil circuits, providing equal flow to each line regardless of weight distribution and allowing the operator to raise or lower virtually any load equally on all points.

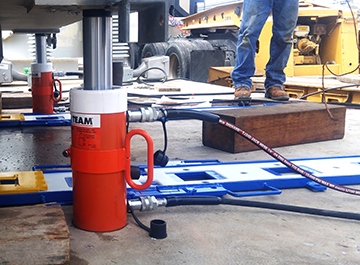

Double-Acting Hydraulic Jacks
We work with some of the top manufacturers of high-quality, field-proven hydraulic cylinders. We proudly offer a range of PowerTeam double-acting steel jacks and Orbit double-acting aluminum jacks.
How to Buy
Information on product purchasing, lead time, shipping, and more.
I just wanted to thank you for your kindness and all your help. The attention and consideration you have shown us is uncommon these days and very much appreciated."

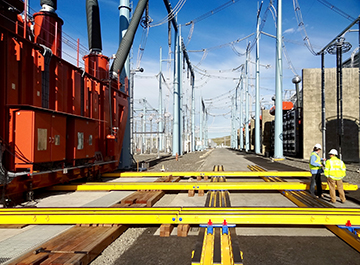

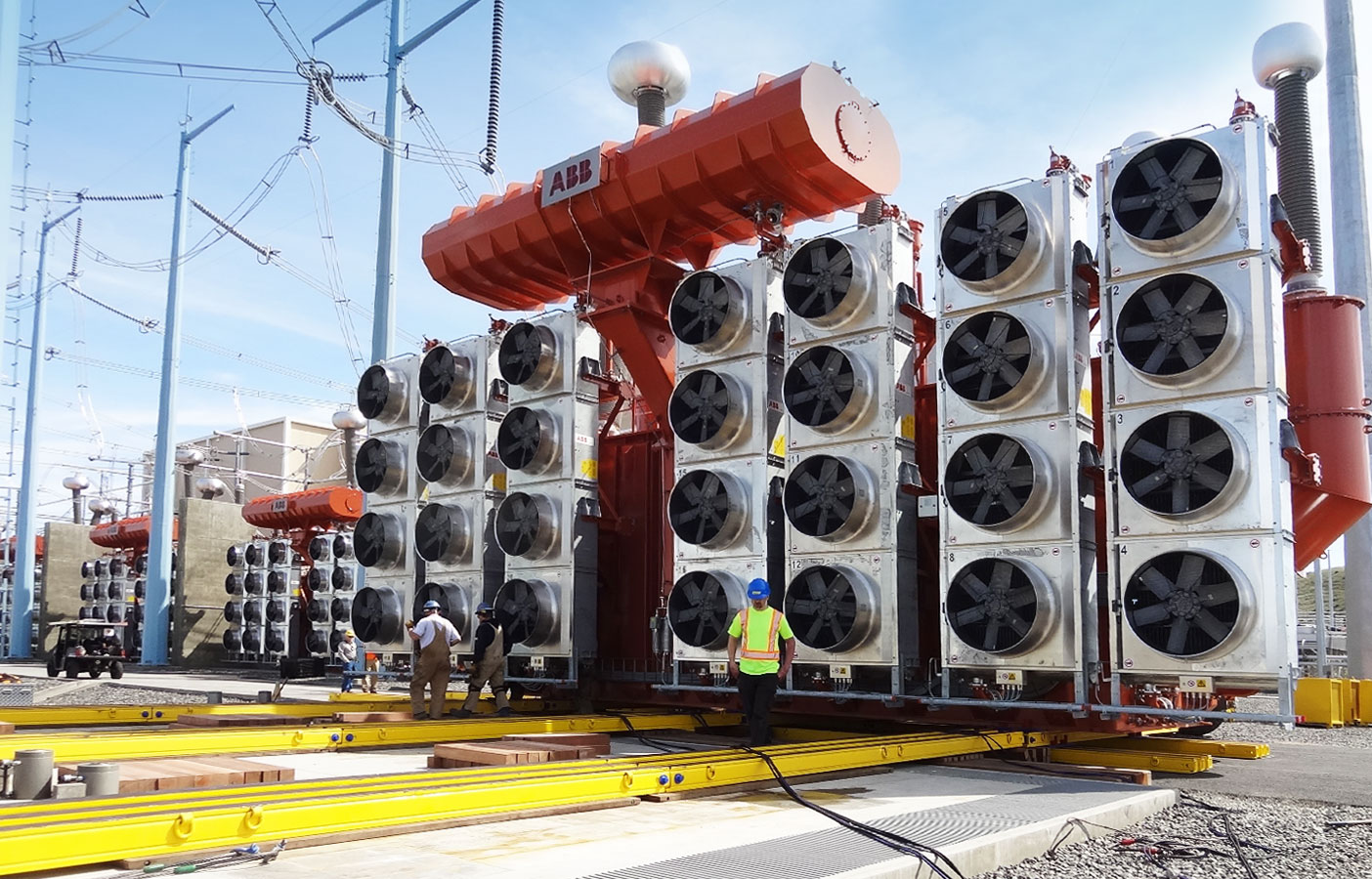

The rigging crew at the Bonneville Power Administration’s Celilo Converter Station in Oregon, USA used their Hydra-Slide HT1000 skidding system to move a fully dressed 670 ton (610 tonne) transformer across their facility during a live site test.
The Celilo crew keep their HT1000 on site so that in the event of a failure, they can change out one of these transformers quickly, minimizing the facility’s down time.
